plot()

Grid.plot(fig: Figure | None = None, ax: Axes | None = None, n_phi: int = 0, rz_range: tuple[float, float, float, float] | None = None, show_phi: bool = True, indices_radial: Buffer | _SupportsArray[dtype[Any]] | _NestedSequence[_SupportsArray[dtype[Any]]] | bool | int | float | complex | str | bytes | _NestedSequence[bool | int | float | complex | str | bytes] | slice | None = None, indices_poloidal: Buffer | _SupportsArray[dtype[Any]] | _NestedSequence[_SupportsArray[dtype[Any]]] | bool | int | float | complex | str | bytes | _NestedSequence[bool | int | float | complex | str | bytes] | slice | None = None, **kwargs) → tuple[Figure | None, Axes]Source

Plotting EMC3-EIRENE-defined grids in \(R–Z\) plane.

This method allows users to plot grid lines at a specific discretized toroidal angle.

Parameters:

figFigure, optional

Matplotlib figure object, by default fig = plt.figure().

axAxes, optional

Matplotlib axes object, by default ax = fig.add_subplot().

n_phiint, optional

Index of toroidal angle, by default 0.

rz_rangetuple[float, float, float, float], optional

Sampling range : \((R_\text{min}, R_\text{max}, Z_\text{min}, Z_\text{max})\), by default None.

show_phibool

Show toroidal angle text in the plot, by default True.

indices_radialarray_like, slice, optional

Specify indices of radial direction, by default None. If None, all radial grids are plotted.

indices_poloidalarray_like, slice, optional

Specify indices of poloidal direction, by default None. If None, all poloidal grids are plotted.

**kwargsdict

matplotlib.lines.Line2D properties, by default {"color": "black", "linewidth": 0.5}.

Returns:

figFigure | None

Matplotlib figure object. If fig is not specified but axis is, return None.

axAxes

Matplotlib axes object.

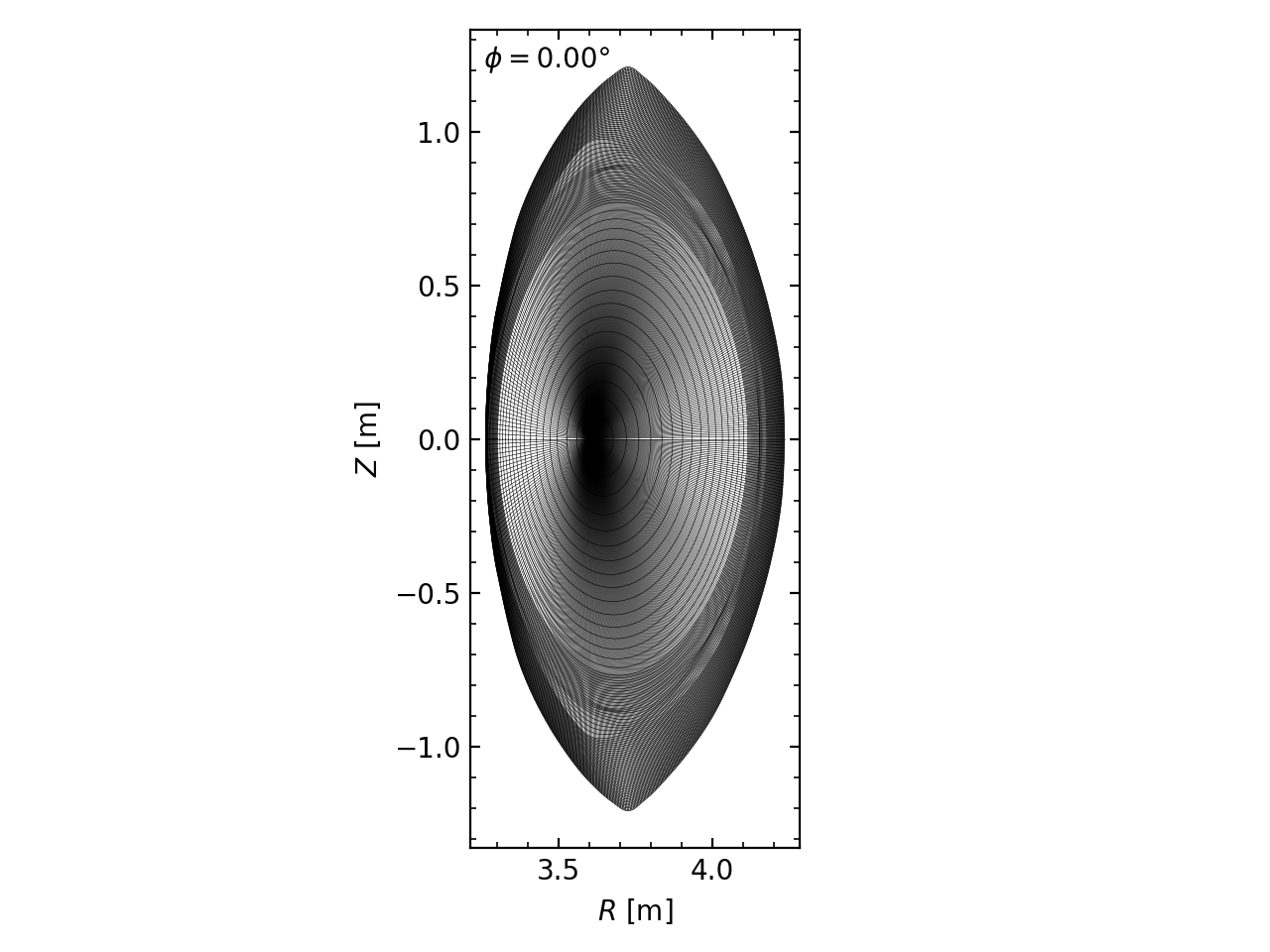

Examples

>>> grid = Grid("zone0")
>>> grid.plot(linewidth=0.2)
