plot_lhd_wall_outline

cherab.lhd.machine.plot_lhd_wall_outline(phi: float) → NoneSource

Plot LHD vessel wall polygons in a \(r\) - \(z\) plane.

Parameters:

phifloat

Toroidal angle in unit of degree.

Examples

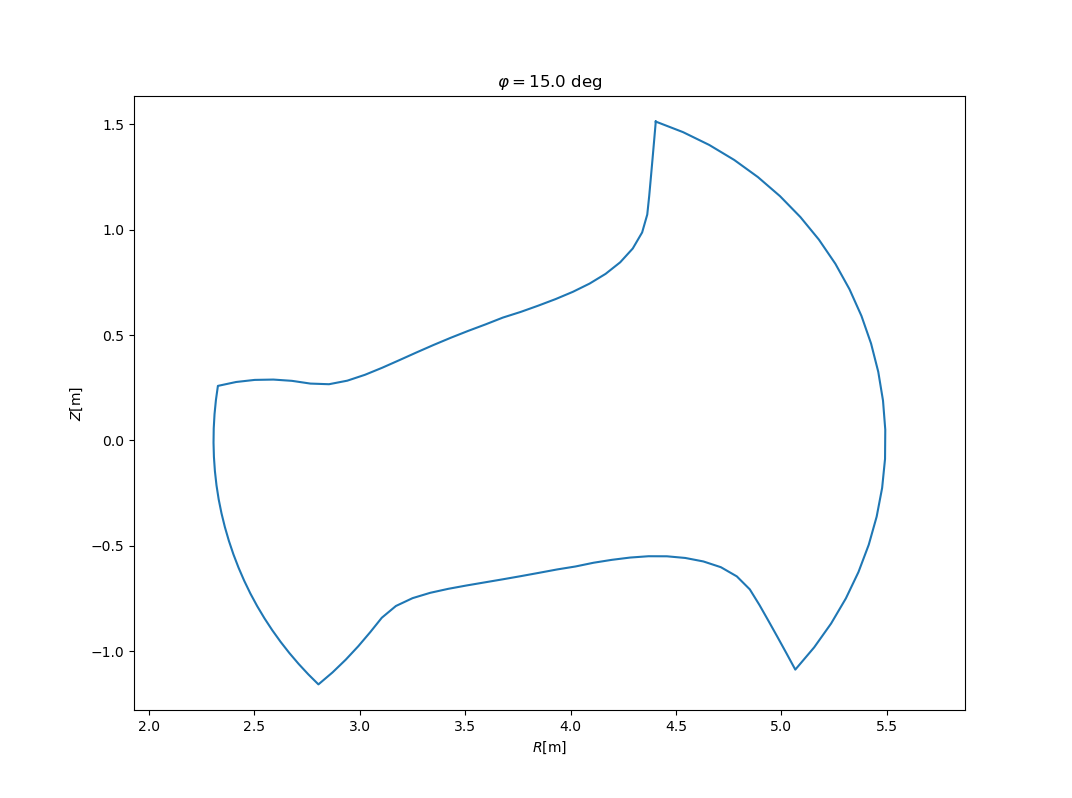

>>> from cherab.lhd.machine import plot_lhd_wall_outline
>>> plot_lhd_wall_outline(15.0)
